Machine Grade Stretch Film for Automatic Pallet Wrappers

Machine grade stretch film is industrial pallet wrap designed for use with compatible automatic and semi-automatic stretch wrapping equipment. The machine rotates the load or moves the film carriage around the pallet while controlling film tension, overlap and application speed.

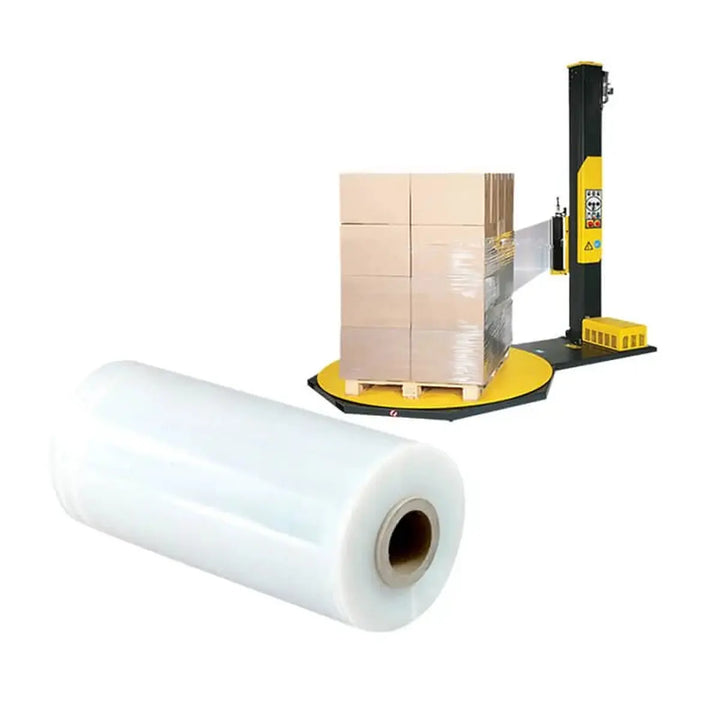

Gpack Supplies offers 20-inch-wide, 5,000-foot machine stretch film in clear and black 80-gauge options. These commercial rolls are suitable for warehouses, manufacturers, distributors, fulfillment centers, freight operations and other businesses that wrap pallets regularly.

Machine-applied stretch film can improve consistency compared with wrapping every pallet manually. A properly configured wrapper can apply repeatable tension and overlap while reducing physical effort for warehouse employees.

Final load containment depends on more than the film specification. Pallet weight, load shape, sharp corners, stacking pattern, machine settings, film pre-stretch and the number of revolutions all affect performance.

Available Machine Stretch Film Rolls

Confirm the individual product specifications, roll weight, core dimensions and machine compatibility before purchasing. Not every machine accepts every machine-film roll configuration.

What Is Machine Grade Stretch Film?

Machine grade stretch film is a flexible plastic film engineered for powered stretch wrapping equipment. It is commonly manufactured from linear low-density polyethylene and is designed to stretch as the machine applies it around a palletized load.

The film’s elastic recovery creates inward holding force after application. This containment force helps keep cartons, bags and packaged products together during warehouse movement and transportation.

Machine stretch film differs from hand stretch film in roll length, roll weight, core configuration and application method. Machine rolls are generally longer and heavier because they are mounted on powered equipment rather than held manually.

Benefits of Machine Stretch Film

• Consistent application on compatible pallet wrapping machines
• Suitable for automatic and semi-automatic wrapping operations
• 20-inch width for standard commercial pallet wrapping
• 5,000-foot rolls for high-volume packaging
• 80-gauge film for common warehouse and distribution applications
• Clear and black options
• Helps stabilize cartons and packaged products on pallets
• Can reduce manual wrapping effort
• Supports repeatable overlap and wrapping patterns
• Suitable for warehouses, manufacturers and distribution centers

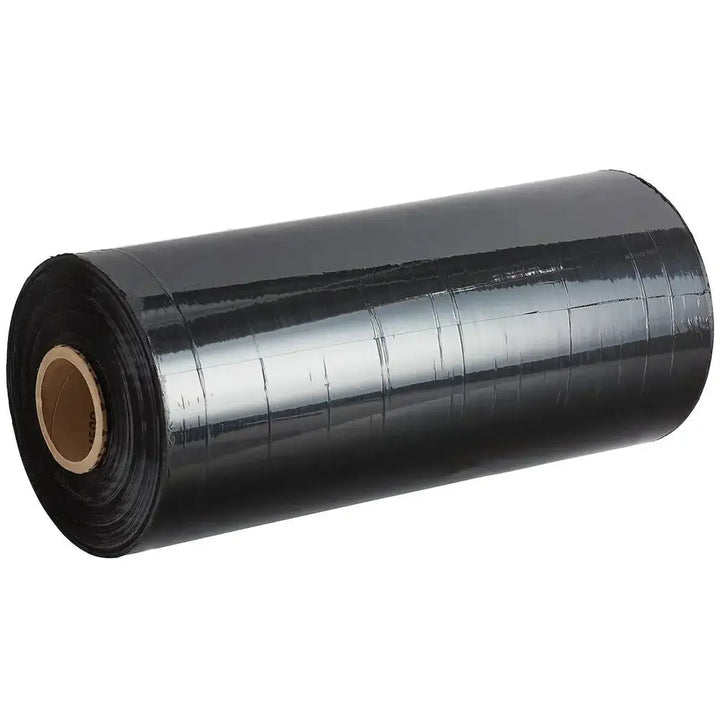

Clear vs. Black Machine Stretch Film

Black stretch film should not be described as a complete security or theft prevention system. It can reduce product visibility, but pallets still require appropriate warehouse controls, labels and transportation procedures.

Understanding 80-Gauge Stretch Film

Gauge is commonly used to describe stretch-film thickness. An 80-gauge film is frequently selected for standard warehouse pallet loads and general distribution applications.

Gauge alone does not determine load containment. Resin formulation, film construction, stretch capability, machine settings and wrapping pattern also affect performance.

Dense, irregular, sharp or unusually heavy loads may require a different film specification, additional wraps, corner protection or another load-securing method.

Machine Stretch Film vs. Hand Stretch Film

Machine film is generally more appropriate when a business wraps pallets continuously. Hand film remains practical for occasional loads, remote warehouse areas or pallets that cannot be positioned on the wrapping machine.

Automatic vs. Semi-Automatic Pallet Wrappers

Common Pallet Wrapper Types

Turntable Stretch Wrappers

A turntable machine rotates the pallet while the film carriage moves vertically. This type is common in warehouses and works well for stable pallet loads that can rotate safely.

Rotary Arm Wrappers

A rotary arm machine keeps the pallet stationary while an arm moves the film around the load. It can be useful for unstable, very heavy or irregular pallets.

Rotary Ring Wrappers

Rotary ring systems are often used in high-throughput operations. The wrapping ring rotates around the stationary load and can support rapid automated cycles.

Horizontal Stretch Wrappers

Horizontal wrappers apply film around long products such as lumber, doors, pipes, rolled goods and elongated merchandise. Confirm the film requirements for the specific equipment.

How to Confirm Machine Compatibility

Before ordering machine stretch film, verify the requirements of the pallet wrapper. Review the equipment manual or the existing film roll currently installed on the machine.

• Film width
• Roll length
• Core inside diameter
• Maximum roll diameter
• Maximum roll weight
• Gauge or film-performance recommendation
• Pre-stretch carriage compatibility
• Cling orientation when applicable

A roll may have the correct width but still be incompatible because of its core, roll diameter, weight or film design.

What Is Pre-Stretch?

Pre-stretch refers to stretching the film before it is applied to the pallet. Many machine wrappers use powered rollers that rotate at different speeds, extending the film before it reaches the load.

Proper pre-stretch can increase the usable length of film and create consistent application. Excessive stretching, however, can reduce puncture resistance or cause film breaks when settings do not match the load and film.

Follow the wrapping-machine and film recommendations rather than assuming one pre-stretch percentage is correct for every pallet.

How to Choose the Correct Machine Stretch Film

Evaluate Load Weight

Heavy or dense pallets may need greater containment force, more film layers or a different film specification than lightweight cartons.

Evaluate Load Shape

Uniform square loads are generally easier to wrap than irregular pallets with protrusions, recessed areas or uneven carton patterns.

Check for Sharp Corners

Carton corners, metal edges and pallet protrusions can puncture the film. Use corner protectors or protective material when necessary.

Consider Transportation Conditions

Pallets transported over long distances or through multiple terminals may require more containment than pallets moved only within one warehouse.

Consider Product Visibility

Choose clear film when product identification and barcode visibility are important. Choose black when reduced visibility or color coding is preferred.

Review Machine Settings

Film force, carriage speed, turntable speed and pre-stretch should be matched to the load. Incorrect settings can cause film breaks, crushed cartons or unstable pallets.

Common Applications for Machine Stretch Film

How to Wrap a Pallet with Machine Stretch Film

1. Inspect the pallet and remove exposed nails or sharp projections.
2. Stack cartons evenly and keep the load within the pallet footprint.
3. Position corner protectors when needed.
4. Place the pallet correctly on or beside the wrapper.
5. Load the film roll according to the machine instructions.
6. Attach the film to the pallet or follow the automatic attachment cycle.
7. Apply several lower wraps to connect the load to the pallet.
8. Wrap upward using the programmed overlap.
9. Apply additional film around unstable areas when required.
10. Complete the top and downward wrapping cycle.
11. Cut or secure the film according to the machine design.
12. Inspect the finished pallet before movement.

Why the Bottom Wraps Matter

The lower revolutions help connect the products to the pallet. Wrapping only the cartons without securing the film near the pallet base may allow the load to shift independently.

The correct number of lower wraps depends on the load weight, pallet condition, film setting and transportation requirements. Avoid covering forklift openings or creating loose film near the pallet base.

Using Edge Protectors and Strapping

Stretch film may be combined with edge protectors, corner boards and strapping when a pallet requires additional stabilization.

Edge protectors can reinforce carton corners, improve stacking alignment and reduce film punctures. Strapping can provide vertical or horizontal load reinforcement for suitable products.

Stretch film should not automatically replace strapping when the load, transportation method or customer requirements specify banding.

Common Machine Stretch Film Problems

Frequent Film Breaks

Film breaks may result from excessive tension, damaged rolls, sharp pallet edges, incorrect threading or incompatible pre-stretch settings.

Loose Pallet Loads

Loose loads may result from insufficient film force, too few revolutions, inadequate bottom wraps or poor carton stacking.

Crushed Cartons

Excessive film force can compress weak cartons and damage packaged products. Reduce tension or improve carton strength when necessary.

Film Tails Coming Loose

The final film tail may not be secured correctly, or the cut-and-wipe mechanism may require adjustment or maintenance.

Uneven Film Coverage

Incorrect carriage speed, turntable speed or overlap settings can leave insufficient protection on part of the pallet.

Roll Telescoping or Damage

Rolls stored horizontally, exposed to heat or handled incorrectly can shift, deform or become difficult to load.

Machine Stretch Film Safety

• Follow the pallet-wrapper manufacturer’s operating instructions
• Keep employees away from rotating equipment during cycles
• Do not bypass machine guards or safety sensors
• Use safe lifting practices when handling heavy film rolls
• Stop the machine before clearing film jams
• Inspect pallets for protruding nails and damaged boards
• Keep loose clothing away from powered equipment
• Train operators before using automatic wrapping systems

How to Store Machine Stretch Film Rolls

Store machine-film rolls upright in a clean, dry indoor location. Protect them from direct sunlight, excessive heat, sharp materials and warehouse contamination.

Avoid dropping rolls or damaging the edges. A crushed roll edge can prevent smooth unwinding and may cause film breaks.

Keep rolls in their original packaging until needed and rotate inventory so older cases are used first.

Machine Grade Stretch Film Frequently Asked Questions
